04: File Trigger

📂 View Source Code

In this module, you will learn how to configure a Databricks Job to automatically run the moment a new file lands in a Unity Catalog Volume or cloud storage path. This enables event-driven data pipelines rather than relying on fixed schedules.

What Are We Building?

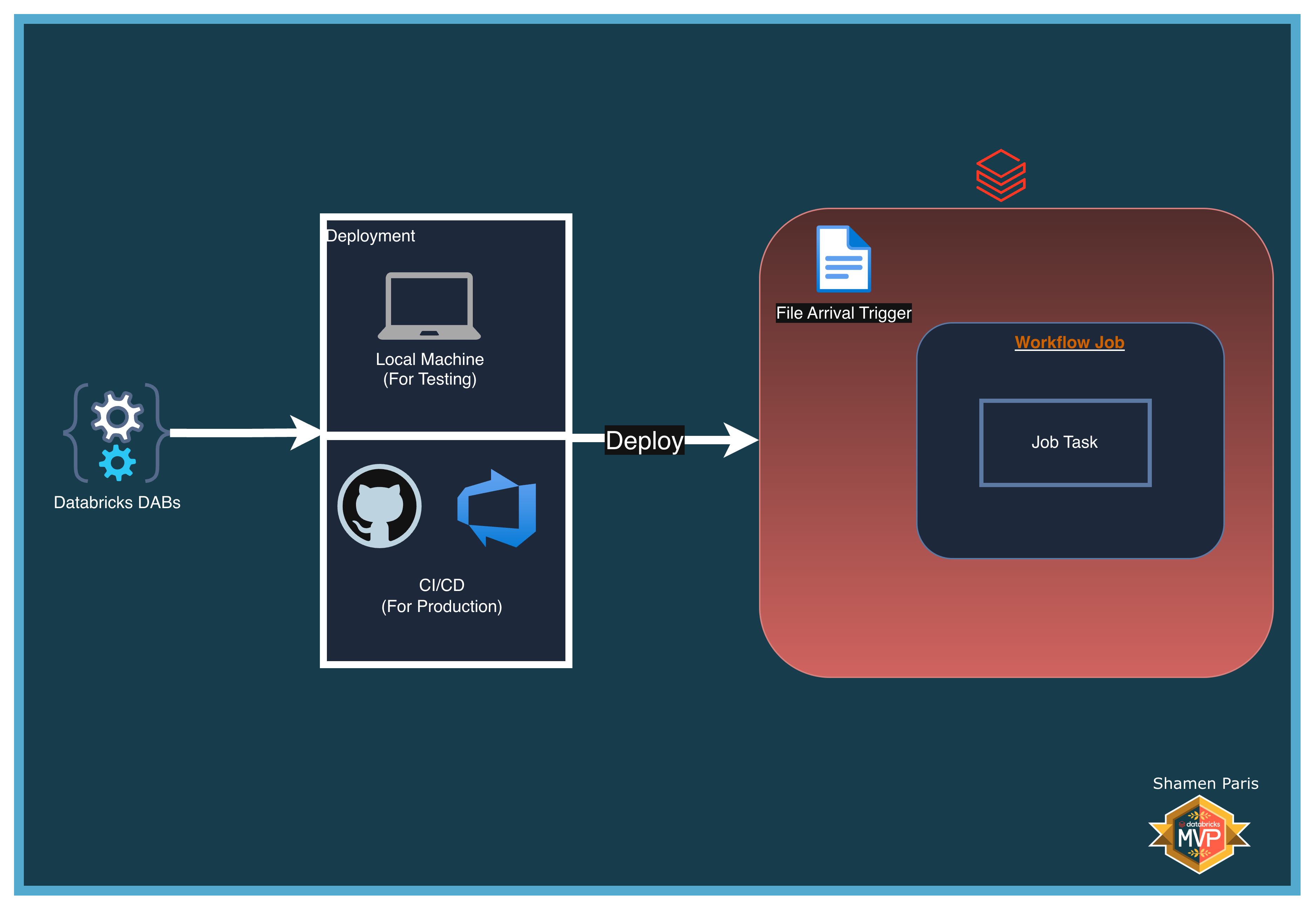

DAB Architecture Setup

Prerequisites and Local Setup

Complete the Prerequisites and Local Setup before continuing.

Setting Up Unity Catalog and a Volume

If you do not yet have a Unity Catalog and Volume, create them as follows.

Option 1: Using the Databricks UI

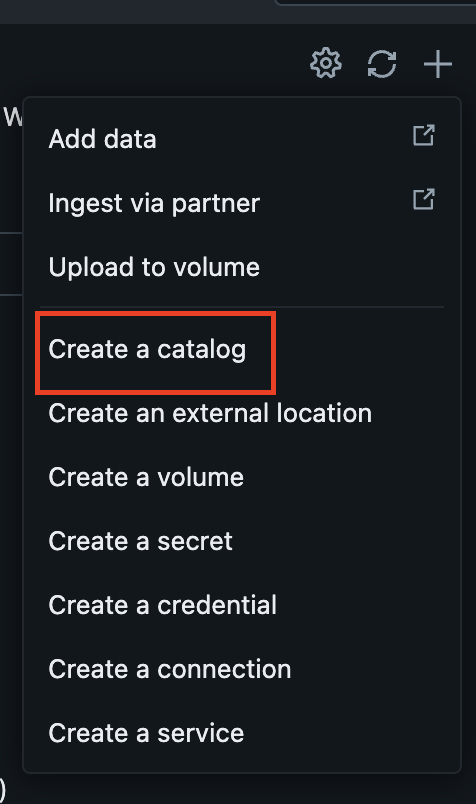

Create Catalog

Option 2: Using the CLI

databricks catalogs create main
databricks volumes create main demo landing_zone MANAGED

Bundle Structure

  1. databricks.yml — The master control file.
  2. resources/jobs/file_trigger_job.yml — Contains the trigger: file_arrival block, which monitors a specific path for new files.
  3. src/file_trigger_notebook.py — The notebook that executes when the trigger fires.

How to Deploy and Run

Once authenticated, navigate to this folder (04-file-trigger) in your terminal.

Step 1: Validate and deploy

databricks bundle validate
databricks bundle deploy

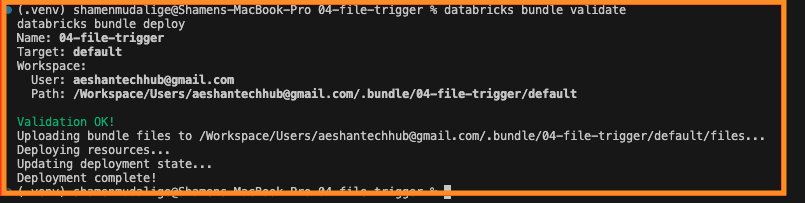

Validation Deploy Success

Step 2: Verify the trigger in the UI

Once deployed, the job will enter a “Waiting for file” state. You can verify this in the Databricks Workflows UI.

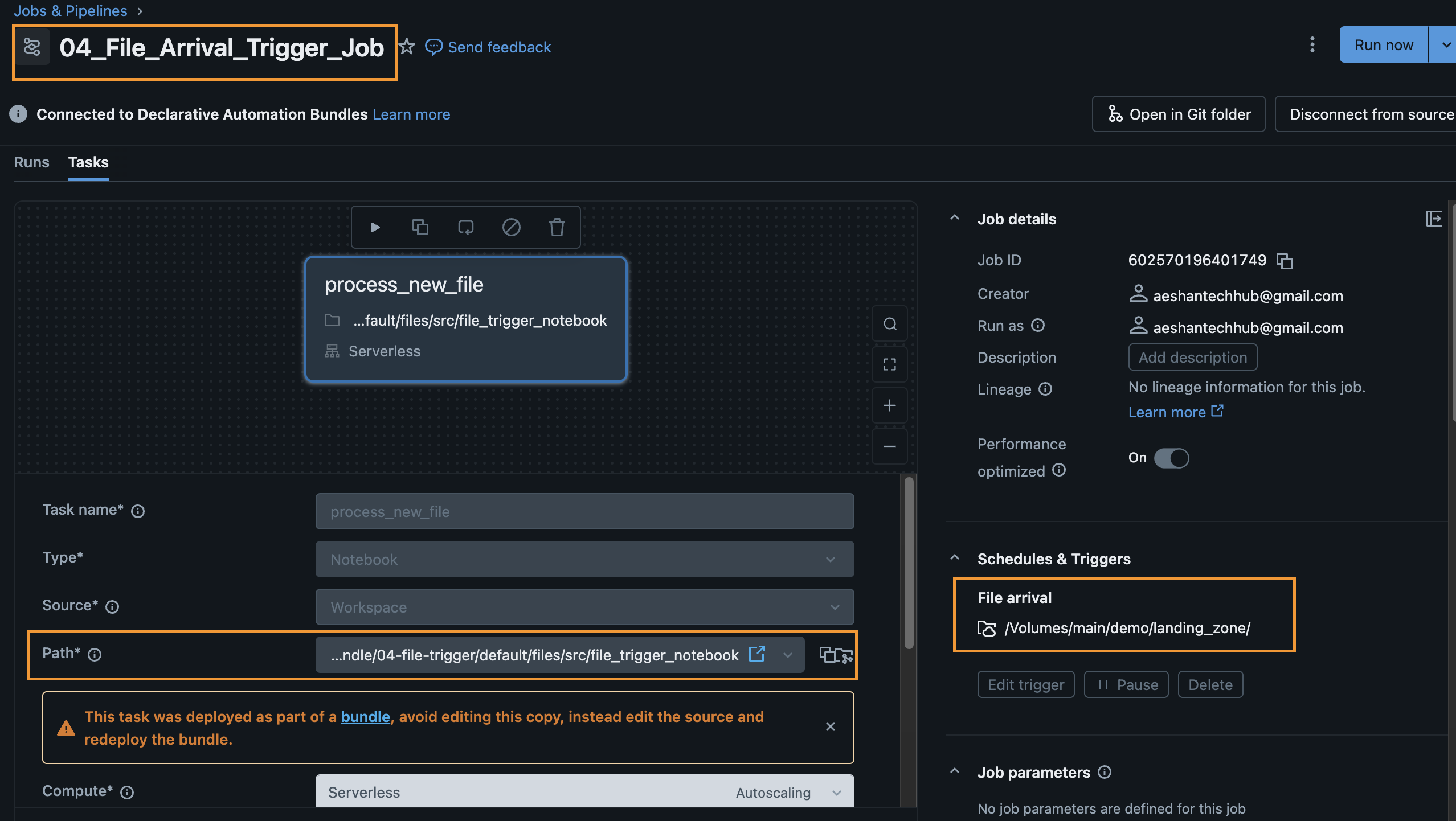

UI View

Step 3: Trigger the job

Upload a sample file (such as a .csv or .txt) into your /Volumes/main/default/landing_zone volume using the Databricks Catalog UI. The job will automatically start within 60 seconds.

A test file is available at docs/downloads/04-file-trigger/trigger.csv.
