06: Run Multiple Tasks

📂 View Source Code

In this module, you will learn how to build a Directed Acyclic Graph (DAG) in Databricks Workflows by orchestrating multiple tasks with dependencies.

The workflow in this module follows this structure:

  • Task A runs first.
  • Task B and Task D run in parallel after Task A succeeds.
  • Task C runs only after Task B succeeds.

All tasks reference the standard Unity Catalog environment: main.demo.

What Are We Building?

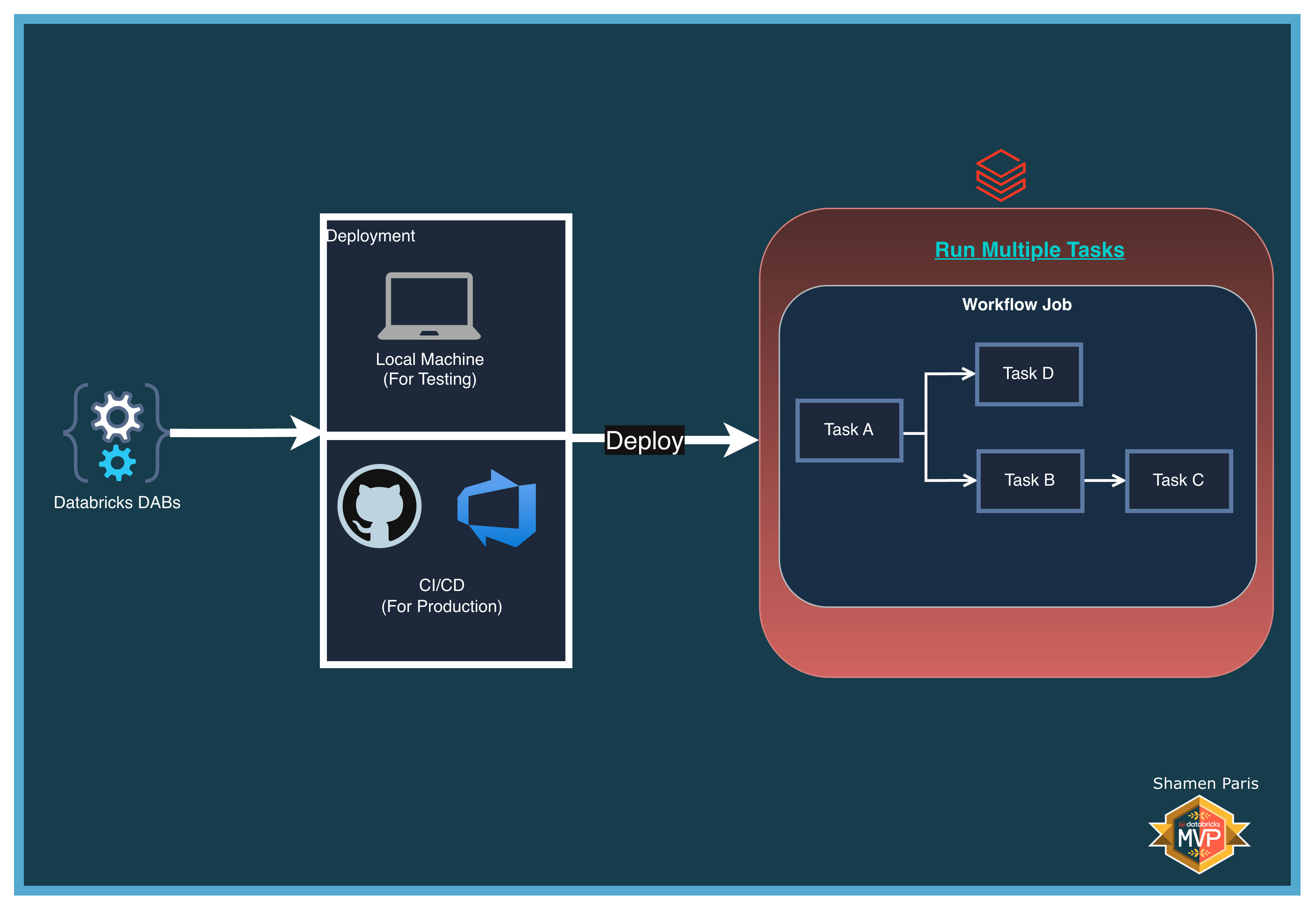

DAB Architecture Setup

Prerequisites and Local Setup

Complete the Prerequisites and Local Setup before continuing.

Bundle Structure

  1. databricks.yml — The master control file.
  2. resources/jobs/multi_task_job.yml — Defines all tasks and their depends_on relationships.
  3. src/task_a.py through src/task_d.py — Individual Python notebooks that execute in order.

How to Deploy and Run

Once authenticated, navigate to this folder (06-run-multiple-tasks) in your terminal.

Step 1: Validate and deploy

databricks bundle validate
databricks bundle deploy

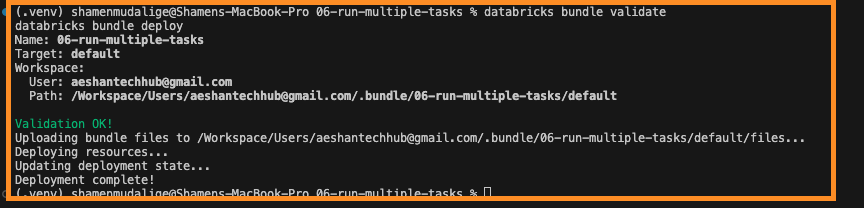

Validation Deployment Success

Step 2: Run the job

databricks bundle run multi_task_job

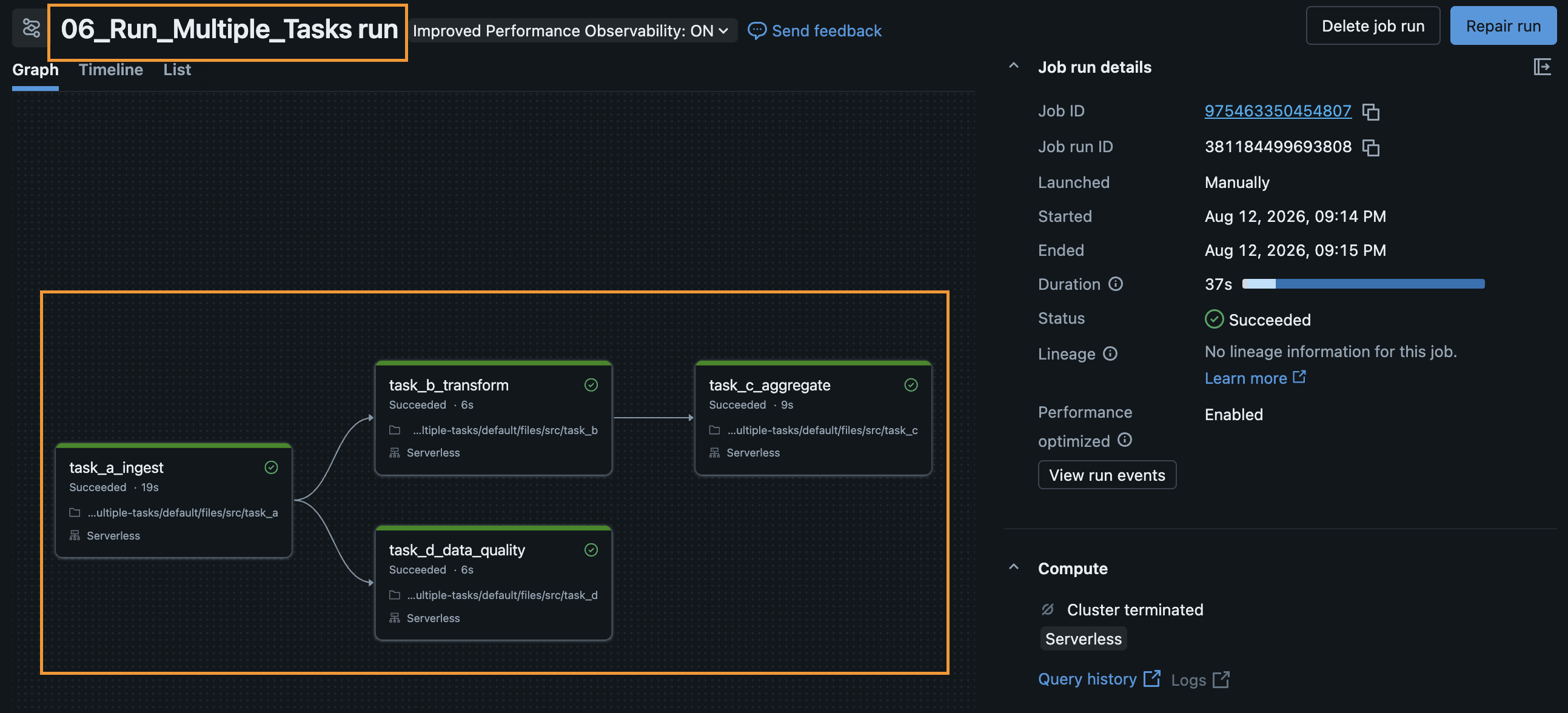

Workflow UI
