09: SQL Tasks with Variable Lookup

📂 View Source Code

In this module, you will learn two advanced enterprise patterns for orchestrating SQL workloads on Databricks:

  1. The sql_task type — Executing raw SQL files directly on a Databricks SQL Warehouse.
  2. Variable Lookups — Hardcoding infrastructure IDs such as a Warehouse ID is an anti-pattern because IDs differ across environments. The DAB lookup feature dynamically resolves the ID of a named resource at deploy time and injects it into the workflow configuration.

What Are We Building?

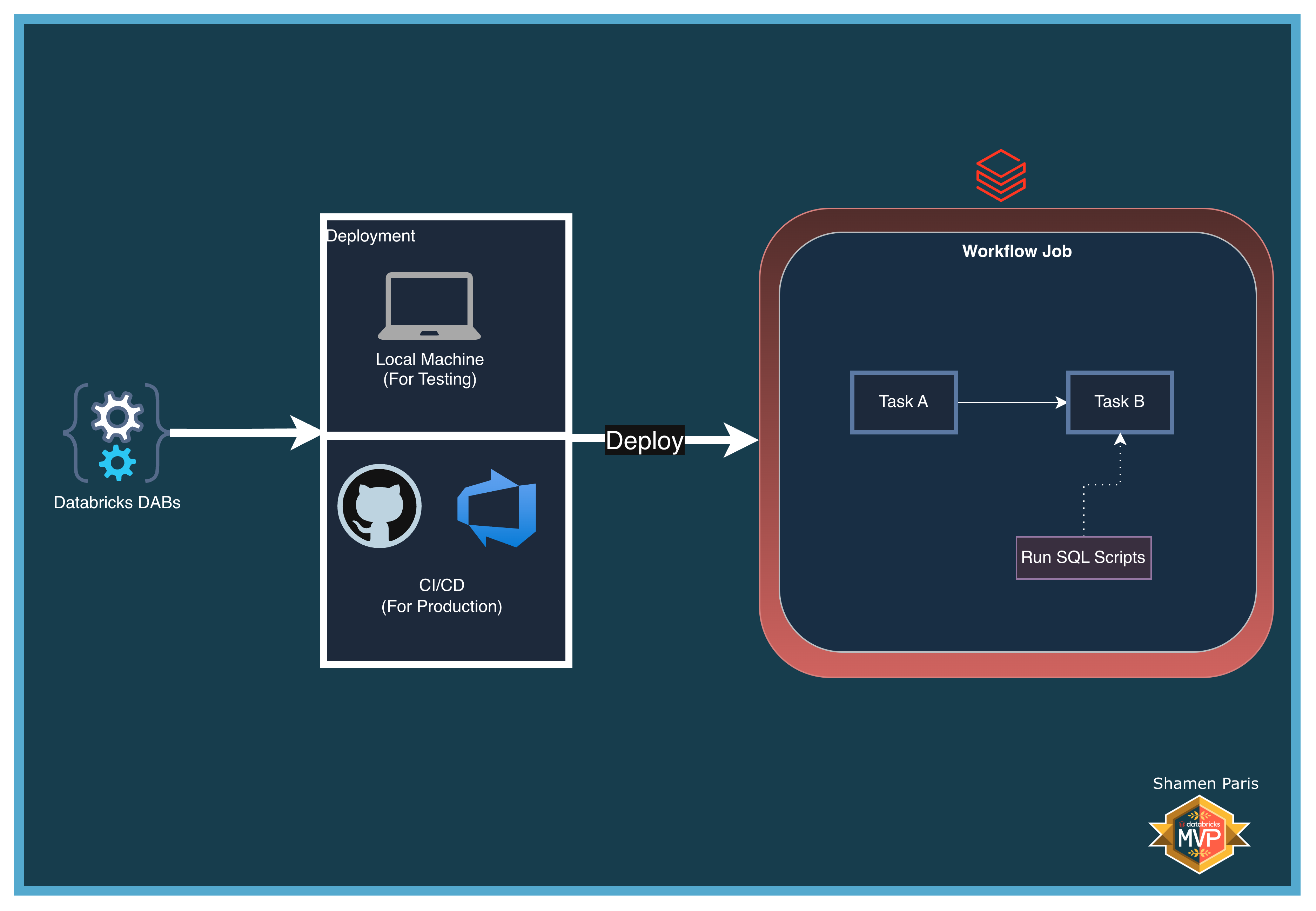

DAB Architecture Setup

Prerequisites and Local Setup

Complete the Prerequisites and Local Setup before continuing.

Additional requirement: A SQL Warehouse named exactly Serverless Starter Warehouse must exist in your Databricks Workspace (this is usually present by default).

Bundle Structure

  1. databricks.yml — Master control file. Uses the variables and lookup blocks to dynamically resolve the sql_warehouse_id by warehouse name at deploy time.
  2. resources/jobs/sql_orchestration_job.yml — Defines the workflow using sql_task and the ${var.sql_warehouse_id} substitution syntax.
  3. src/task_a_setup.py — A Python notebook that creates and populates a Delta table in main.demo.
  4. src/task_b_transform.sql — A raw SQL script that inserts and aggregates data using the SQL Warehouse engine.

How to Deploy and Run

Once authenticated, navigate to this folder (09-sql-tasks-with-variable-lookup) in your terminal.

Step 1: Validate and deploy

databricks bundle validate
databricks bundle deploy

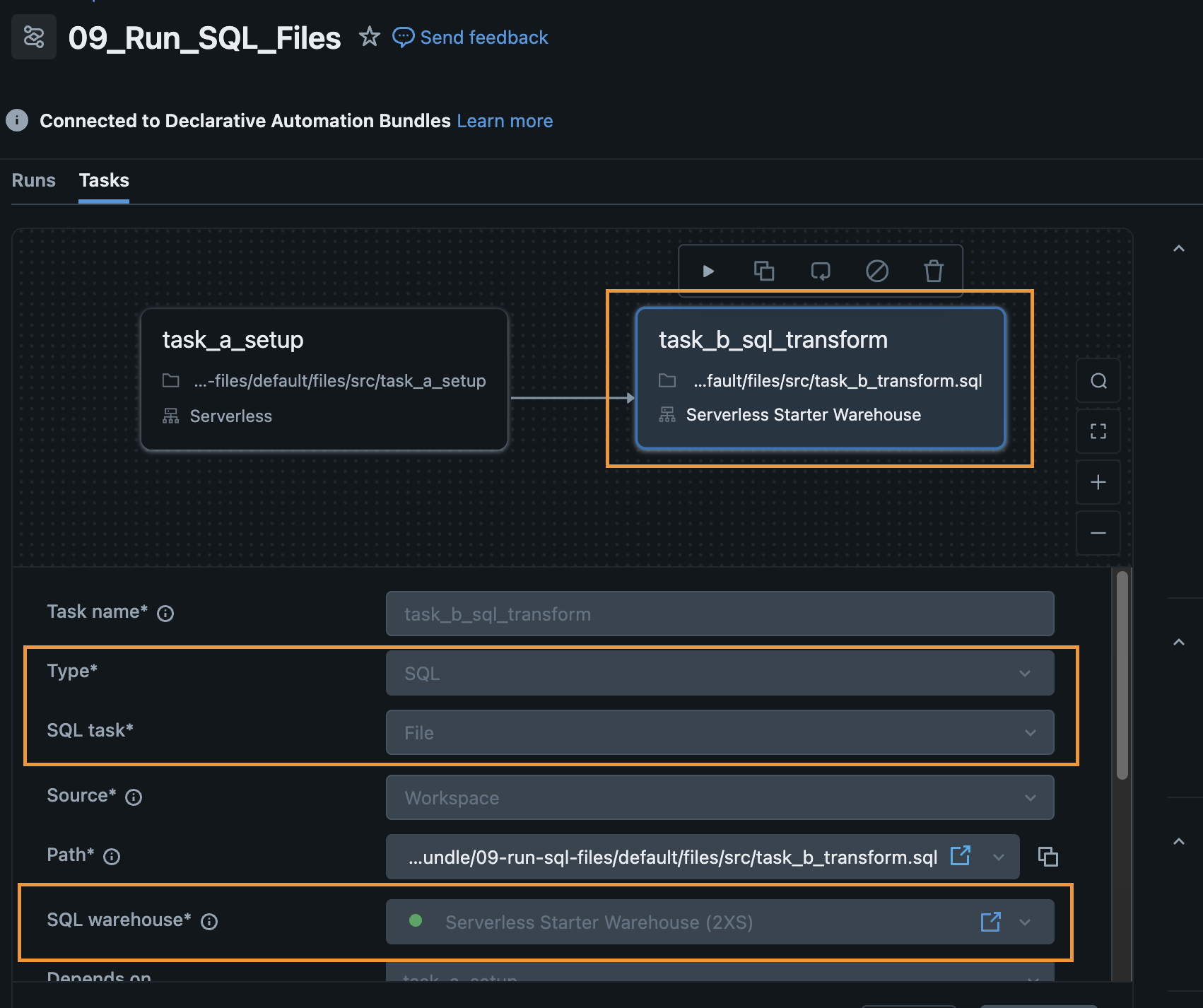

Deployment Success

Step 2: Run the job

databricks bundle run sql_orchestration_job

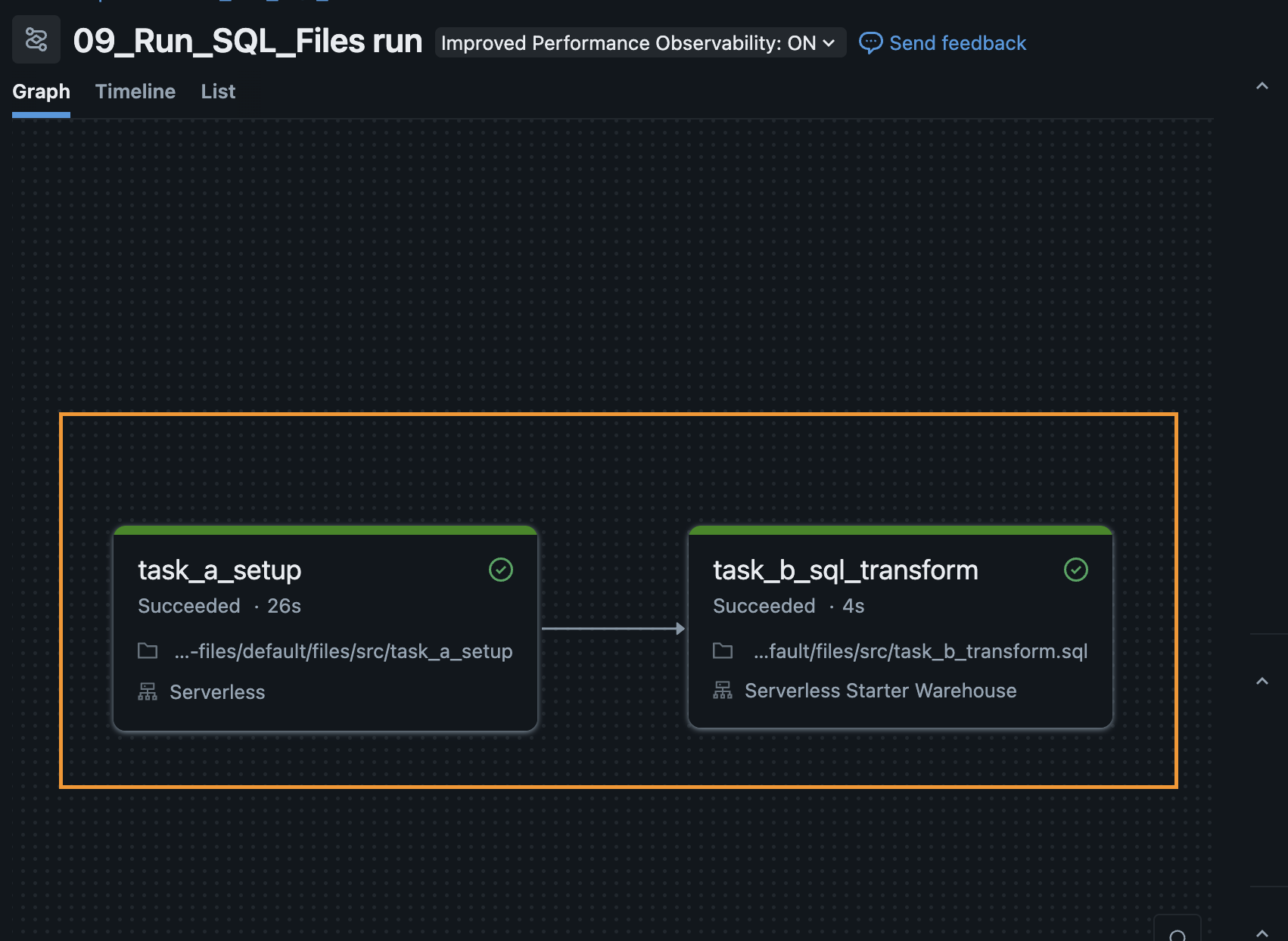

SQL Orchestration
