13: Advanced Job and Pipeline Orchestration

📂 View Source Code

In this module, you will build a Master Orchestrator workflow that ties together all major Databricks resource types within a single bundle deployment. The master job executes a local notebook, triggers a Delta Live Tables pipeline, and then triggers a completely separate Databricks Workflow.

This pattern reflects real enterprise architectures where pipelines and reporting jobs are maintained by different teams but need to be coordinated within a single orchestration layer.

What Are We Building?

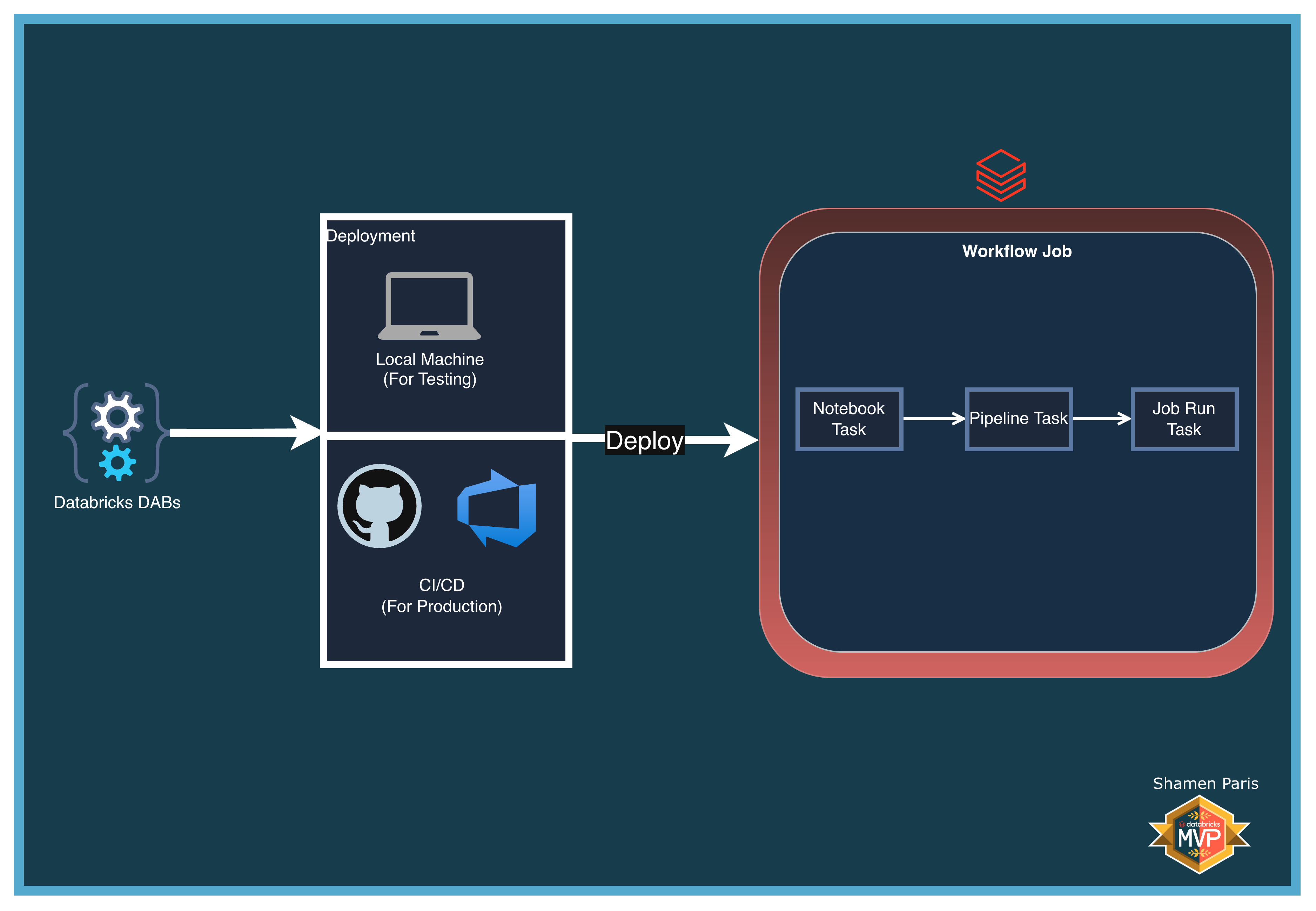

DAB Architecture Setup

Prerequisites and Local Setup

Complete the Prerequisites and Local Setup before continuing.

Bundle Structure

  1. databricks.yml — Master control file that loads all resources via **/*.yml.
  2. resources/pipelines/dlt_pipeline.yml — The declarative DLT pipeline.
  3. resources/jobs/child_job.yml — A standalone child reporting workflow.
  4. resources/jobs/master_job.yml — The master orchestrator. Uses notebook_task, pipeline_task, and run_job_task to chain the resources together using their dynamically resolved IDs (e.g., ${resources.pipelines.advanced_dlt_pipeline.id}).
  5. src/ — Python and DLT source files for each task.

How to Deploy and Run

Once authenticated, navigate to this folder (13-advanced-job-pipeline) in your terminal.

Step 1: Validate and deploy

databricks bundle validate
databricks bundle deploy

Step 2: Run the master job

You only need to trigger the master job. It will automatically trigger the DLT pipeline and the child job in sequence.

databricks bundle run master_orchestration_job

Step 3: Verify the output

In the Workflows UI, you will see Task A execute locally as a notebook, Task B show a dedicated pipeline execution node, and Task C show a direct link to the triggered child_reporting_job run instance.
