Enterprise Databricks Orchestration

📂 View Source Code

A demonstration of advanced enterprise orchestration on Databricks using Databricks Asset Bundles (DAB). This scenario illustrates how to structure a modular Databricks repository containing multiple pipelines and jobs organised by business domain (e.g., Product and Retail).

By breaking down large monolithic Databricks workflows into smaller, interconnected jobs and pipelines, teams can achieve better maintainability, clearer dependency management, and easier debugging.

Architecture Overview

This module provisions an interconnected set of resources:

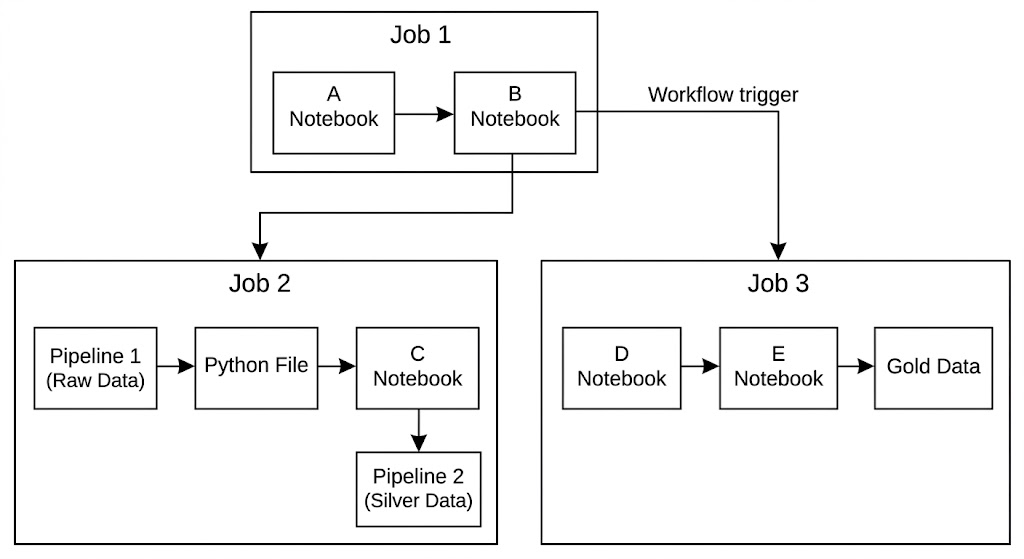

Enterprise Orchestration Architecture

Scenario Highlights

  • Modular Resources: Resources are organised logically into domain folders (product and retail) rather than lumped into a single file.
  • Dynamic Glob Inclusion: The databricks.yml dynamically loads all YAML configurations from deeply nested directories using the **/*.yml pattern.
  • Variable Injection: Uses variables to inject standard target schemas and catalogs (e.g., main.demo) into resources dynamically.
  • Production-Grade Orchestration: Demonstrates how Databricks Workflows can act as a fully-fledged enterprise orchestrator (similar to Airflow). It dynamically resolves dependencies between disparate assets using their logical bundle IDs (e.g., ${resources.jobs.job3.id} or ${resources.pipelines.dlt_pipeline_bronze.id}) rather than hardcoding environment-specific IDs.
  • Job-to-Job Dependencies: Shows how a master orchestrator job (job1) can trigger other standalone downstream jobs (job2 and job3) using the run_job_task capability.

  • Pipeline Orchestration: Shows how to trigger Delta Live Tables pipelines (dlt_pipeline_bronze and dlt_pipeline_silver) seamlessly from within standard Databricks Jobs.

Repository Structure

scenarios/02-enterprise-databricks-orchestration/
    databricks.yml                      Main bundle configuration
    variables/
        var_defs.yml                    Global variable definitions (e.g., catalog, schema)
    resources/
        jobs/
            product/
                job1.yml                Master orchestrator job
                job3.yml                Downstream product job
            retail/
                job2.yml                Downstream retail job
        pipelines/
            product/
                dlt_pipeline_bronze.yml Bronze ingestion pipeline
            retail/
                dlt_pipeline_silver.yml Silver transformation pipeline
    src/
        files/                          Standard Python scripts
            initial_run.py
            dlt_pipeline_bronze.py
            dlt_pipeline_silver.py
        notebooks/                      Databricks Notebooks
            notebook_A.py
            notebook_B.py
            notebook_C.py
            notebook_D.py
            notebook_E.py
    docs/                               Documentation and architecture diagrams

Quick Start

1. Validate Configurations

cd scenarios/02-enterprise-databricks-orchestration
databricks bundle validate -t dev

2. Deploy to Databricks

databricks bundle deploy -t dev

3. Run the Orchestration

Trigger the master orchestrator (job1). This will recursively trigger the pipelines and downstream jobs as defined in the dependencies.

databricks bundle run job1 -t dev
